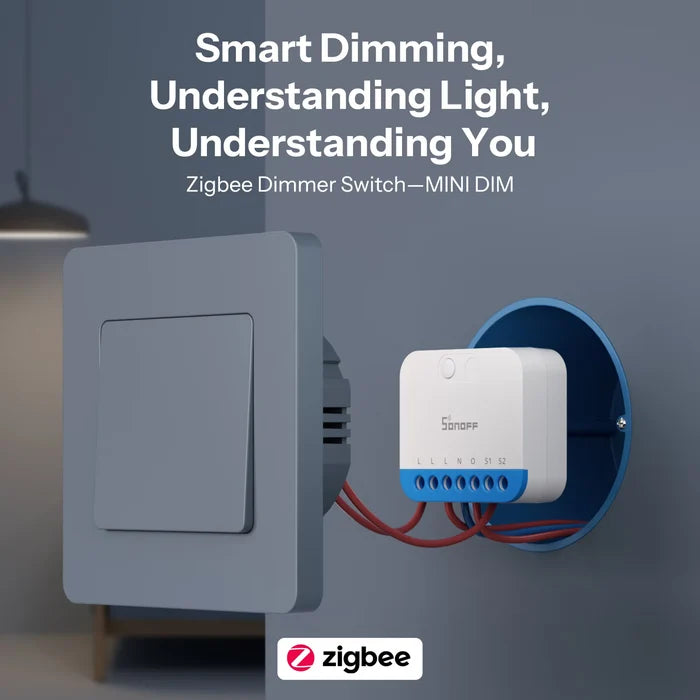

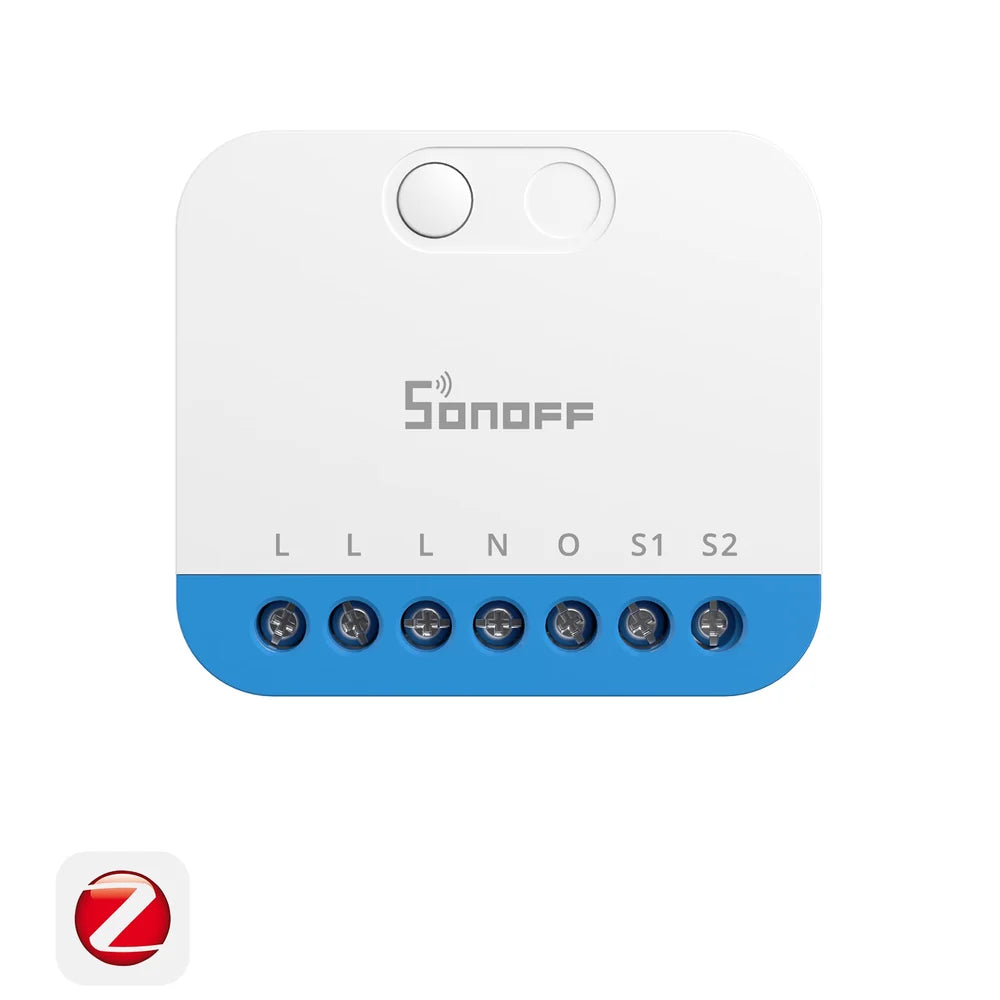

Transform ordinary dimmable lighting into a smart, precisely controlled lighting system with the SONOFF MINI Extreme Zigbee Dimmer Switch.

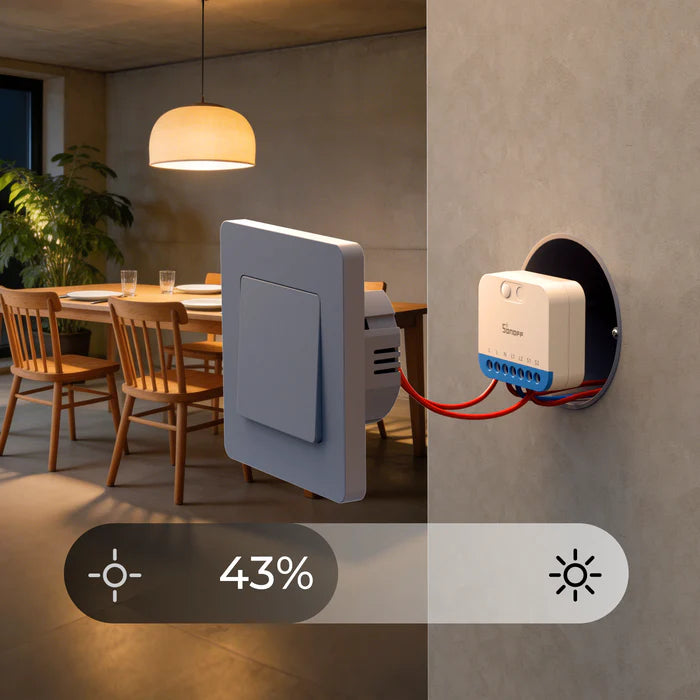

The compact MINI-ZBDIM installs behind a compatible wall switch and provides smooth brightness adjustment, remote app control, schedules, voice commands and smart automation. Its trailing-edge dimming technology offers broad compatibility with modern dimmable LED lighting, as well as incandescent and halogen lamps.
Automatic and manual brightness calibration helps match the dimming range to the connected lamp for smoother, more stable performance. Integrated power monitoring provides insight into lighting consumption, while built-in over-temperature protection improves installation safety.

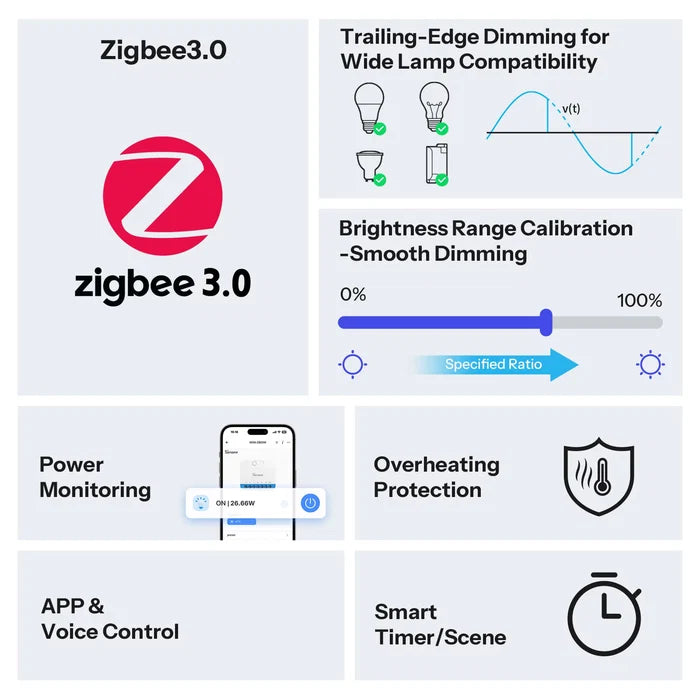

Key features:
-
Zigbee 3.0 smart dimmer
-
Smooth trailing-edge brightness control
-

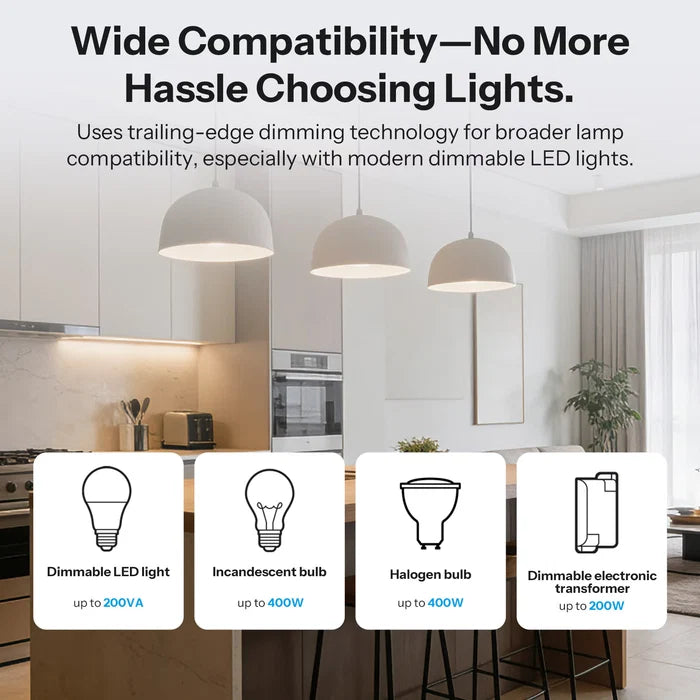

Supports dimmable LED lamps up to 200VA
-
Supports incandescent lamps up to 400W
-
Supports halogen lamps up to 400W
-
Supports dimmable electronic transformers up to 200W
-
Maximum load current of 2A
-
Automatic and manual brightness calibration
-

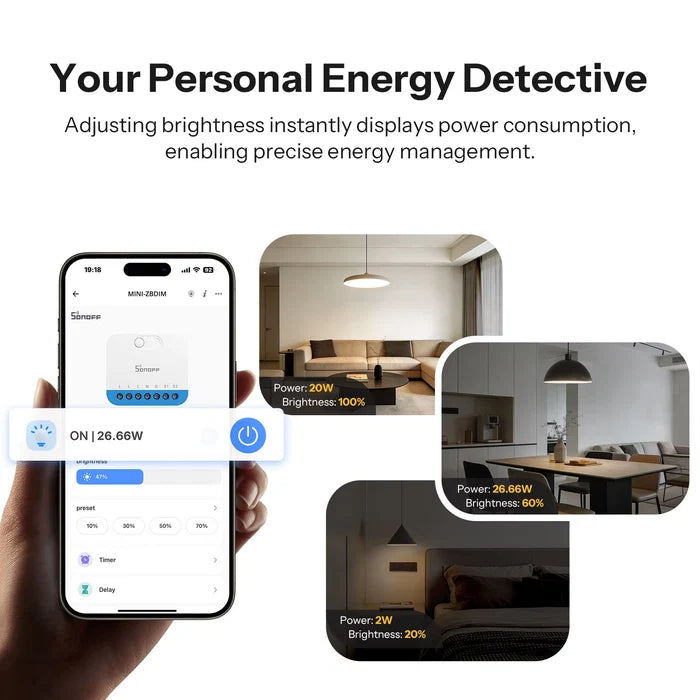

Real-time power monitoring
-
Built-in over-temperature protection
-
Remote on/off and brightness control
-
Timers, schedules and smart scenes
-
Voice control through supported platforms
-
Supports rocker and momentary wall switches
-
Functions as a Zigbee router to extend mesh coverage
-
Compatible with supported Home Assistant and Zigbee2MQTT installations
-
Compact 45 × 39.4 × 16.8 mm design
Ideal for living rooms, bedrooms, dining areas and other spaces where smooth smart-lighting control is required while retaining a physical wall switch.
Please note:
-
Designed for 220–240V, 50Hz single-phase installations only.
-
A live and neutral wire are required.
-
Only compatible dimmable lamps should be connected.
-
Brightness calibration should be completed after installation.
-
A compatible Zigbee gateway is required for smart control.
-
Installation should be completed by a qualified electrician.
